Premium HVAC Installation in Doheny Estates

Premium HVAC Installation in Doheny Estates: planning range $11 800–$48 000, typical timeline 5–10 business days from signed scope to install start. Premium HVAC installation or replacement can require mechanical permits, matched-equipment documentation, electrical disconnect or circuit review, condensate routing, duct changes, and final inspection depending on jurisdiction and scope. Call +1 (213) 277-6575 for a same-day comfort assessment.

Design My HVAC Install Call: +1 (213) 277-6575

★★★★★ 5.0 · 30+ verified reviews · Westside Los Angeles install desk

Field write-up by Sofia Kwan, Westside HVAC Performance Lead

Rheem water heater installed beside a Mitsubishi Electric air handler in a clean white-walled mechanical room with PVC condensate piping and dedicated drain pan

From the project ledger: Pico-Robertson duplex: 2008 5-ton swap to a Mitsubishi 3-zone retrofit

Recent premium HVAC installation project for context — what we measured, what we installed, and what the homeowner saw afterwards.

2024-09-12 → 2024-09-19

Pico-Robertson duplex: 2008 5-ton swap to a Mitsubishi 3-zone retrofit

1962 duplex on a quiet block off Sherbourne, two upstairs bedrooms ten degrees hotter than the main floor in summer. Old condenser was a Goodman GSX130601, oversized for the actual load.

Mitsubishi Electric ductless mini-split outdoor heat pump installed on a Westside Los Angeles side yard with shrub-screened condenser placement and dedicated electrical disconnect
Property
Duplex (2 units, 1 owner-occupied) (1962)
Removed
Goodman GSX130601 5-ton single-stage AC, original 2008 install
Installed
Mitsubishi MXZ-3C30NAHZ2 multi-zone with one PEAD-A18AA8 ducted slim cassette + two MSZ-FH09NA wall units
Permit
LADBS mechanical permit pulled, inspector cleared 2024-09-25
Cost
$14 800–$16 400
  • Manual J came back at 2.4 tons whole-house, not 5
  • Static pressure on existing trunk was 1.06 in. w.c. — 100% over spec
  • Two upstairs bedrooms moved to dedicated zones, main floor onto a low-static slim cassette routed through the existing ceiling chase
  • Line-set sleeved through a stucco wall pocket painted to match

Measurements

Static Pressure Pre
1.06 in. w.c.
Static Pressure Post
0.48 in. w.c.
Temp Delta Pre
9.5°F upstairs/main floor
Temp Delta Post
1.8°F upstairs/main floor
D B Property Line
47 dB at the rear lot line

Field note: Oversized tonnage was the actual problem, not the brand. The new equipment is smaller, quieter, costs less to run, and finally cools the upstairs.

Mitsubishi air handler with insulated refrigerant lines and PVC condensate piping installed in a tight West Los Angeles closet ceiling cavity

What a premium HVAC installation project actually involves in Doheny Estates

Premium HVAC Installation done right in Doheny Estates means measuring equipment tier, documenting load and duct design, and planning around steep curb access before the install crew arrives. Doheny Estates pages should merge design sensitivity with HVAC performance.

Field reality in Doheny Estates: hillside view homes, architectural remodels, roof HVAC, tight mechanical closets, premium interiors. Each of those building types has its own static-pressure profile, line-set route, electrical load curve, and finish-protection cost. Premium HVAC Installation priced for one type can be 30–40% off for another. A real estimate starts with photos and a site visit, not a square-footage multiplier.

Doheny Estates field profile

Doheny Estates reference points: Doheny Drive, Sunset Strip edge, hill streets, view homes. Building mix on the block: hillside view homes, architectural remodels, roof HVAC, tight mechanical closets, premium interiors. Access constraints we plan for: steep curb access, roof staging, visual screening, sound placement, HOA or owner-rep rules. Risks we measure for: solar heat gain, line-set route limits, noise complaints, old wiring, condensate drainage. Seasonal operating context: hot south-facing slopes, wind exposure, wildfire smoke, winter runoff near foundations, marine influence after sunset. Permit jurisdiction: City of Los Angeles hillside and canyon addresses by exact parcel. Utility context: City of Los Angeles addresses may involve LADWP electric and water service, LADBS permits, and SoCalGas gas-appliance context; exact utility should be verified by address.

Sizing, brand selection, and placement

Common failure patterns we find on Doheny Estates premium HVAC installation jobs: oversized equipment; high static pressure; noisy condenser placement; wrong AHRI match. None of these are exotic. They are the predictable consequences of solar heat gain plus aging building systems. The estimate accounts for them up front instead of pretending they will not appear.

What we do not do: keep resetting breakers on a tripping circuit, run water into a backed-up drain, operate HVAC equipment that smells hot or is spilling water, or quote replacement before a real diagnostic. Those shortcuts turn small repairs into bigger damage.

How the existing building decides the scope

The repair-versus-replace decision hinges on three numbers: cost of the proposed repair, expected remaining life if repaired, and SEER2/HSPF2 differential if replaced. On premium homes in Doheny Estates, sound performance and electrical capacity are also part of the decision. We document all four before recommending.

Permit pathway through the local jurisdiction

Premium HVAC installation or replacement can require mechanical permits, matched-equipment documentation, electrical disconnect or circuit review, condensate routing, duct changes, and final inspection depending on jurisdiction and scope. For this market specifically: LADBS hillside, mechanical, electrical, plumbing, and inspection context can apply when equipment location, roof access, circuits, or drains change.

The replacement scope opens with photos and a site walk. We measure static pressure, photograph the panel main breaker, list comfort complaints by room, and confirm whether HOA, estate-manager, or jurisdictional review is going to be in the project critical path. Inspection-day documentation is prepared from day one — AHRI certificate, equipment serial numbers, electrical disconnect routing, condensate plan.

Commissioning and the close-out package

When you book premium HVAC installation, send: photos of existing equipment, photo of the breaker panel, comfort complaints by room, brand preference if any, and any HOA or estate-manager rules. The thicker the note, the faster Doheny Estates dispatch can pre-stage the right truck. https://nexfield.pro/crm/book?u=205

Hillside and canyon HVAC: what the slope, the access, and the sun exposure actually mean

The hills cluster covers Doheny Estates, Sunset Plaza, the Bird Streets, Mount Olympus, Laurel Canyon, Nichols Canyon, Outpost Estates, Hollywood Dell, Whitley Heights, and Beachwood Canyon. These are not estate projects in the Bel-Air sense. They are architectural retrofits on parcels where the slope, the road width, and the sun exposure shape every decision.

The first variable is the road. Sunset Plaza Drive is a 22-foot easement after parked cars eat into it. Lookout Mountain in Laurel Canyon narrows to 16 feet on the worst curves. Beachwood narrows to one lane at the Hollywoodland gate. None of this matters until equipment arrives, and then it matters more than anything. Our standard practice on hillside addresses is a pre-quote walkthrough with measurements: driveway grade, road width at narrowest curve, overhead clearance to the property entry, and any tree canopy that limits truck height. The numbers go directly into the labor estimate.

Sun exposure on view-home parcels controls the cooling load in ways that flat-lot houses don't experience. A south- or west-facing glass wall above the canyon takes direct solar gain from 11am to 7pm in summer. The slab and interior masonry hold that heat until midnight or later. A 4-ton system that handles the daytime load can fail at 9pm because the building is still releasing absorbed heat into the air. Our approach here is rarely larger equipment. It is variable-speed equipment that can run low-stage continuously in the evening and pull the slab temperature down before the next morning's cycle starts.

Glass-wall homes in the Bird Streets and Trousdale-adjacent ridges respond particularly badly to oversized standard-stage equipment. The system short-cycles, the humidity climbs because the dehumidification cycle never completes, and the owner experiences "clammy comfort" — air that's at setpoint but feels wrong. The fix is modulating compressors (Carrier Infinity 26, Trane XV20i, Daikin Fit) that can ride the load. We have replaced more correctly-sized 2-ton variable-speed systems that work better than the 4-ton single-stage units they replaced than the other way around.

Ductwork in this cluster is often the constraint. Hillside homes built 1950–1975 commonly have ducts routed through 2x4 stud bays or floor joists that were never sized for modern airflow. A 1968 Hollywood Hills modern with 14-inch supply trunks throttling a new 4-ton air handler will measure 1.0+ in. w.c. static pressure when it should be 0.5. Equipment manufacturers' warranties don't cover field installations operating outside spec, and we will not install premium variable-speed equipment on a duct system that throttles it. The duct rebuild becomes part of the scope or we walk away from the bid.

  • Pre-quote driveway/road measurement on hillside addresses
  • Variable-speed compressors mandatory on glass-wall view homes
  • MERV-16 + ERV + PurpleAir integration standard since 2024
  • Condensate routing to dry well, code-pitched lateral, or lift pump — never planter

Recent premium HVAC installation install photos

Field photography from Westside Los Angeles hvac projects with similar scope to a typical Doheny Estates job.

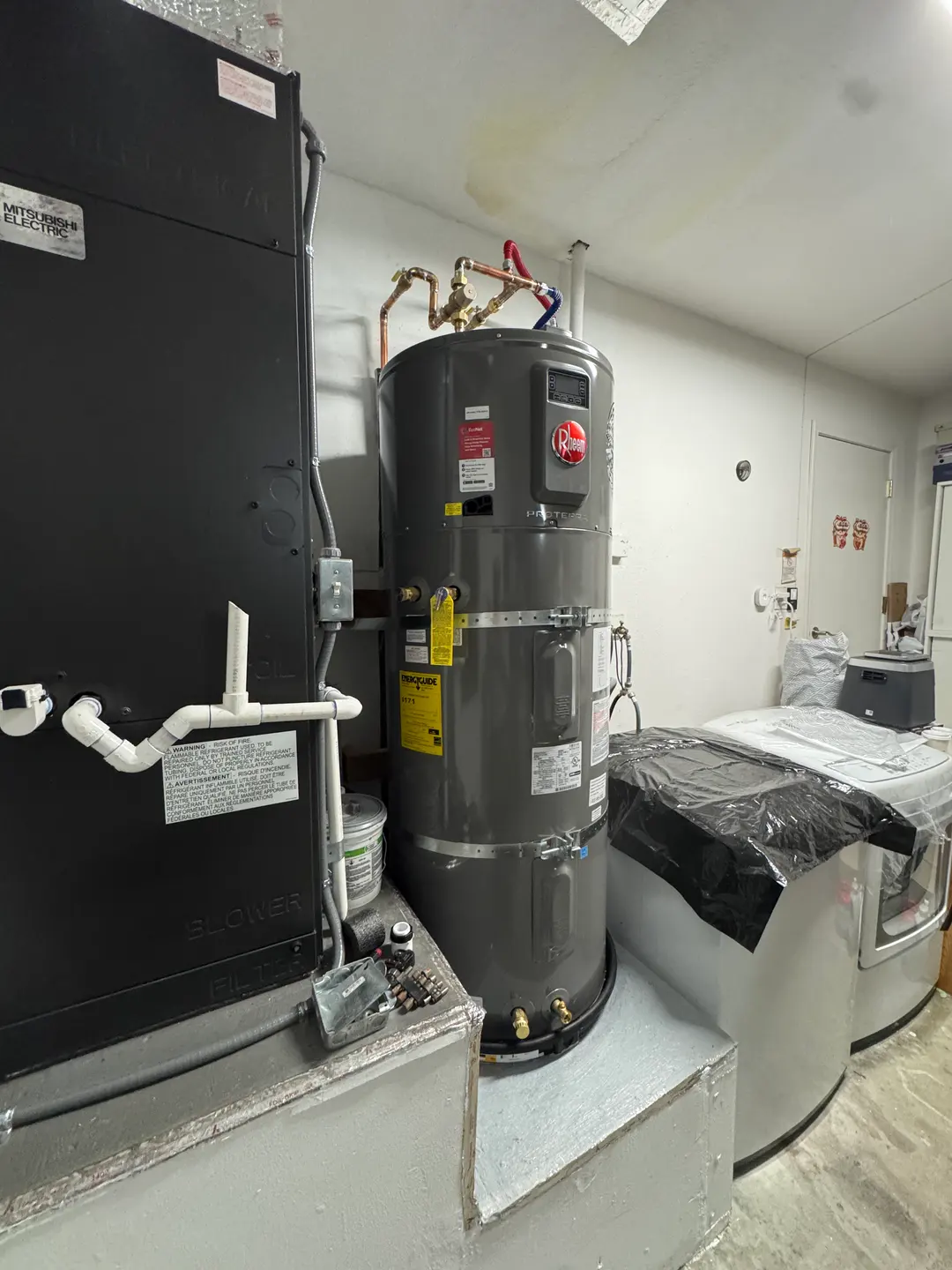

Mitsubishi Electric vertical air handler with seismic strapping and PVC condensate piping installed in a West Los Angeles mechanical room
Mitsubishi air handler suspended on threaded rod with isolation. Filter access faces the door, condensate exits through a P-trap with cleanout.
Galvanized round trunk duct connected to insulated flex branches in a West Los Angeles attic during HVAC system retrofit
Galvanized round trunk during ductwork redesign. Take-offs sealed with mastic before flex-duct branches were re-attached and strapped.

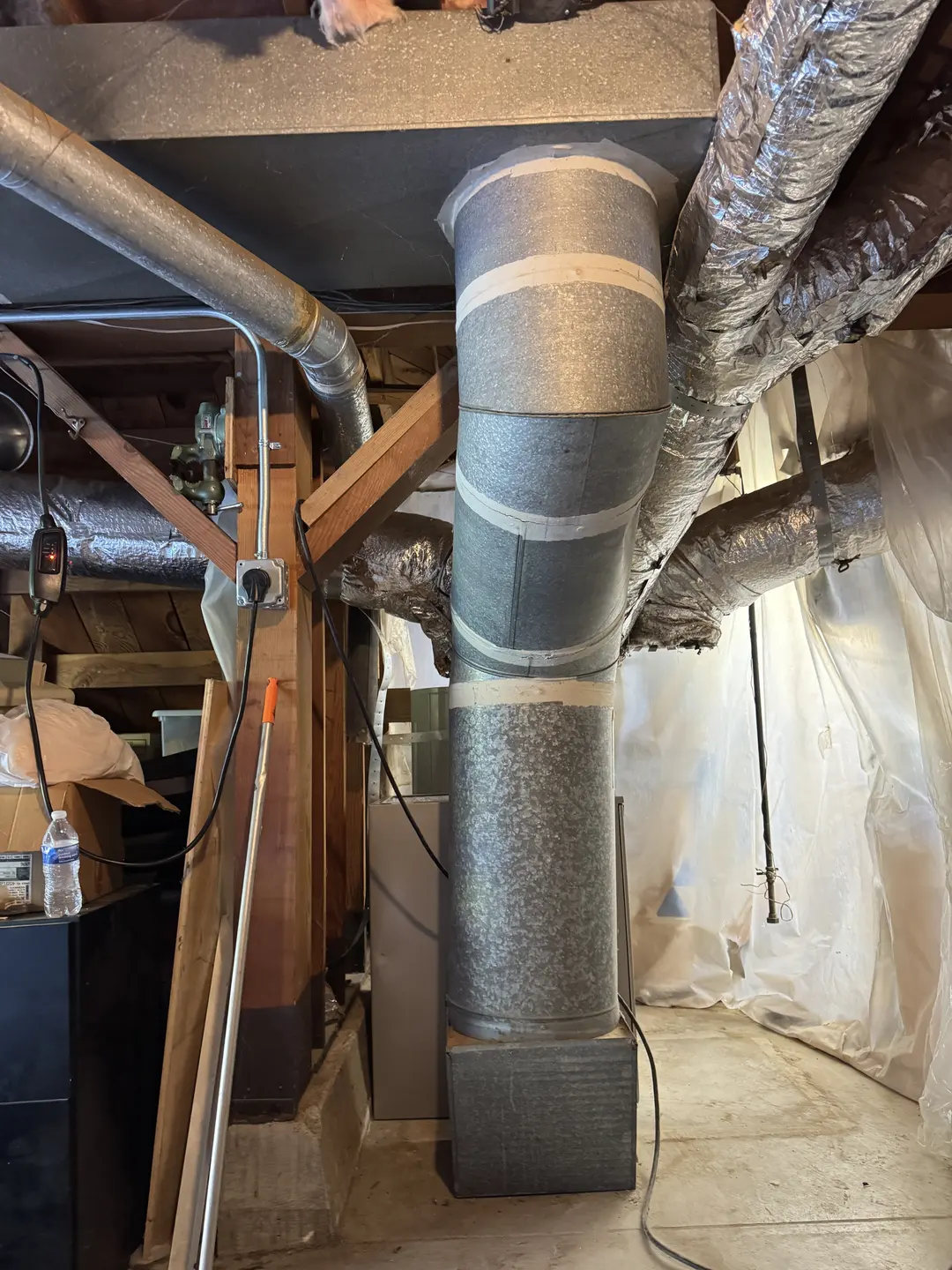

Large round galvanized supply duct and B-vent rising from the air handler in a West Los Angeles utility space during system replacement
New 14-inch supply trunk above the air handler. B-vent rises straight to the roof flashing for clean combustion exhaust.
Reflective insulated supply trunk transitioning into multiple flex branches in a West Los Angeles attic-space duct retrofit
Insulated supply transition in an attic. Branches routed to the bedrooms and main living zones, sealed at every collar.

Cost drivers in Doheny Estates

Six factors decide what this job costs in Doheny Estates. Equipment tier matters less than most homeowners assume. Access, scope of supporting trades, and finish protection matter more.

DriverWhy it matters for premium hvac installationHow to reduce friction
Equipment tier Equipment tier changes labor, parts, diagnostic time, safety steps, or inspection needs. In Doheny Estates, it is influenced by steep curb access and solar heat gain. Send photos, confirm access, and note coordination needs in your booking note.
Load and duct design Load and duct design changes labor, parts, diagnostic time, safety steps, or inspection needs. In Doheny Estates, it is influenced by roof staging and line-set route limits. Send photos, confirm access, and note coordination needs in your booking note.
Electrical capacity Electrical capacity changes labor, parts, diagnostic time, safety steps, or inspection needs. In Doheny Estates, it is influenced by visual screening and noise complaints. Send photos, confirm access, and note coordination needs in your booking note.
Line-set route Line-set route changes labor, parts, diagnostic time, safety steps, or inspection needs. In Doheny Estates, it is influenced by sound placement and old wiring. Send photos, confirm access, and note coordination needs in your booking note.
Sound and screening requirements Sound and screening requirements changes labor, parts, diagnostic time, safety steps, or inspection needs. In Doheny Estates, it is influenced by HOA or owner-rep rules and condensate drainage. Send photos, confirm access, and note coordination needs in your booking note.
Finish protection Finish protection changes labor, parts, diagnostic time, safety steps, or inspection needs. In Doheny Estates, it is influenced by steep curb access and solar heat gain. Send photos, confirm access, and note coordination needs in your booking note.

Another recent premium HVAC installation project

2024-10-30 → 2024-11-08

Bel-Air estate: Trane XV20i replaces a 22-year Carrier with attic relocation

Air handler buried behind a finished hallway ceiling above a staircase. Replacing it in place would have meant opening a custom plaster ceiling. Relocated to the attic over the garage instead.

Carrier 80% gas furnace installed in a Bel-Air crawl-space pad with corrugated stainless gas line and AC disconnect mounted overhead
Property
Estate, single-family (1989)
Removed
Carrier 25HCB6 4-ton AC + matching FE4ANF005 air handler, original 2002 install
Installed
Trane XV20i 4TWV0048A1 4-ton variable-speed heat pump + TAM9A0C48V41 air handler (relocated)
Permit
Beverly Hills mechanical permit (BHPO address verification confirmed LA City). LADBS inspector cleared 2024-11-12.
Cost
$38 500–$42 000

Field note: Estate replacements often cost less when you stop fighting the building. Moving the air handler upstairs preserved the hallway ceiling and shortened the install timeline by two days.

Send details for premium hvac installation in Doheny Estates.

Add photos, access notes, urgency, and whether old wiring or another home-system issue is involved.

Design My HVAC Install Call: +1 (213) 277-6575

Related links for this decision

AC Replacement

quiet outdoor unit placement, duct condition, line-set reuse, refrigerant transition, matched coils, airflow correction, and premium cooling performance.

What changes in Doheny Estates

Heat Pump Installation

all-electric comfort planning, panel capacity, duct performance, variable-speed equipment, rebate verification, winter heating reliability, and future electrification.

heat pump installation in Doheny Estates

Homeowner Questions

Short answers for the questions that usually decide whether this is a repair, replacement, inspection, or emergency visit.

How fast should I book premium HVAC installation in Doheny Estates?

Book quickly if the symptom involves oversized equipment or high static pressure. In Doheny Estates, urgency rises when line-set route limits could affect safety, finished interiors, electrical equipment, or shutoff timing. Active leaks, no-cooling during heat, gas odor, burning electrical smell, or repeated breaker trips are emergency-tier — call +1 (213) 277-6575.

What should I prepare for premium HVAC installation before the technician arrives?

Send photos of photograph old equipment labels, photograph the electrical panel, list comfort complaints by room. For Doheny Estates, also confirm roof staging and visual screening.

Do you handle permits and inspections for premium HVAC installation in Doheny Estates?

Yes. Premium HVAC installation or replacement can require mechanical permits, matched-equipment documentation, electrical disconnect or circuit review, condensate routing, duct changes, and final inspection depending on jurisdiction and scope. LADBS hillside, mechanical, electrical, plumbing, and inspection context can apply when equipment location, roof access, circuits, or drains change AHRI matched-system documentation, condensate routing review, electrical disconnect verification, and final inspection scheduling are included in the replacement scope.

How quickly can a Doheny Estates premium HVAC installation appointment be scheduled?

Standard Doheny Estates bookings open within 48–72 hours; emergency dispatch for active leaks, no-cooling, or gas/electrical safety symptoms is typically on-site within 60–120 minutes.

Recent premium HVAC installation reviews from Westside Los Angeles homeowners

These visible review bodies are kept in exact parity with the JSON-LD review schema on this page.

Eric H. Pico-Robertson

We had two upstairs bedrooms that ran ten degrees hotter than the rest of the duplex on summer afternoons, and our existing 2008 condenser was running constantly. The team came out, did a real Manual J on every room, and instead of pushing a 5-ton replacement they recommended a 3-zone Mitsubishi MXZ system with a small ducted unit for the main floor and two wall cassettes upstairs. The line-set route through the wall cavity was thoughtful and didn't touch any exterior plaster. They pulled a mechanical permit through LADBS, scheduled the inspector, and were done with everything in five days. Two summers in, the upstairs is now within two degrees of the main floor, and our LADWP bill in August dropped from around $480 to $310.

Rachel S. Marquez Bel-Air

Replacing a 22-year-old Carrier system in an estate where the air handler was buried behind a finished hallway ceiling was not going to be a one-day job. Sofia's team mapped the duct routes with a borescope first, redesigned the return air, and moved the air handler to the attic over the garage so the hallway no longer had to be opened. Floor protection was professional — Ram Board, plastic tunnels, the works. Trane XV20i runs almost silent on the patio side, and the new variable-speed staging means the upstairs guest rooms finally cool. Permit and inspection went through Beverly Hills with no friction because they had the AHRI matched-system documentation ready.

Jaime L. Malibu Colony

Our previous condenser failed at year six because nobody flagged the salt-air problem when it was installed. This time the install desk specifically recommended the Carrier 24VNA6 with the seacoast package and put it on the leeward side of the property with a stainless mounting bracket. They also added a quarterly coil-rinse maintenance plan because PCH dust plus marine moisture is brutal on equipment. Three winter storm seasons in and the unit looks like it did on day one. They also coordinated the City of Malibu permit form, which was its own small adventure.

Denise Park Trousdale Estates

Mid-century modern flat roof, glass walls everywhere, and the architect was very specific that we could not see the new condenser from the pool. The team proposed a Daikin Fit side-discharge unit hidden behind a custom screen wall they coordinated with our landscape designer. Sound at the property line measures 49 dB which is below the city limit. They commissioned the system with manometer readings, sent a written report with static pressure across the coil, and registered the warranty. This is what an HVAC install at this level should look like.

Source Context Used

Official and authoritative references shape the permit, utility, safety, efficiency, and local building guidance on this page.

LADBS plan check and permits City of Los Angeles HVAC, electrical, plumbing, plan-check, permit, and inspection context depends on final scope. LADBS inspection services Inspection workflow matters when mechanical, electrical, plumbing, water-heater, or remodel-related work must be inspected. LA County Building and Safety permits Unincorporated hillside, canyon, and county-served addresses may use LA County permit pathways instead of LADBS. City of Beverly Hills Building and Safety Beverly Hills addresses need local building and inspection context before assuming Los Angeles city rules. City of Malibu Building Safety Malibu coastal and hillside properties can require local building safety review for replacement and equipment placement. Malibu streamlined HVAC permit form HVAC replacement in Malibu has specific local documentation paths that should be checked before quoting. City of Santa Monica permit counter Santa Monica has local permit-counter workflows that can affect replacement and electrification projects. Santa Monica existing building electrification roadmap Electrification policy context supports heat-pump, panel, and water-heater planning without promising eligibility.
